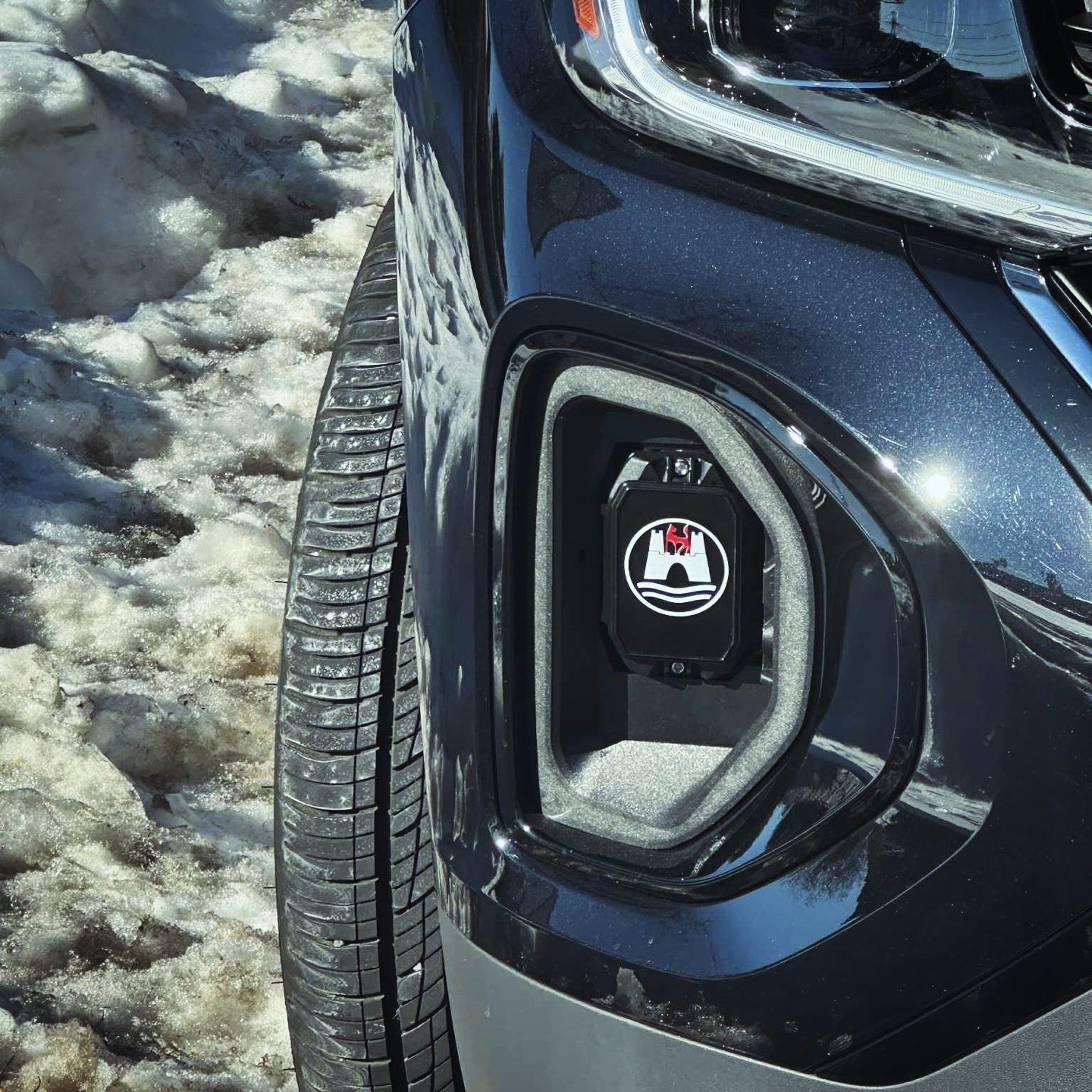

2024-2026 VW Atlas (CA1) Bumper Air Duct / Fog Light Attachment Kit - STREET

Atlas Owners! Need more night time/harsh condition visibility? This kit enables you to mount aftermarket lights to the front bumper of your 2024-2026 Volkswagen Atlas, non R-Line.

These light mounting kits are OEM fitting - no modification (cutting/trimming) to the bumper needed. See installation video below! Note: Lights are NOT included with the mounting kits!

Maximum Light Dimensions (Make sure your chosen light fits!):

Inboard (90°) Light Bracket (aka ILB):

• • Height: 3.15" (80 mm)
  • Width: 5.1" (130 mm)

  • Base Width: 2.83" (72 mm)
  • Bolt Hole Diameter: 0.338" (8.6 mm) - Can be drilled out to 3/8" (10 mm)
  • Note: ensure that the light you choose is still appropriately functional when mounting a light at 90°. These light mounts do allow for some directional adjustment, but check the beam pattern of the lights you intend to use. Don't blind people on the road (lol).

Horizontal Light Bracket (aka HLB):

• • Height: 4.33" (110 mm)
  • Width: 3.3" (84 mm)
  • Base Width: 2.44" (62 mm)
  • Base Depth: 1.38" (27 mm)
  • Bolt Hole Diameter: 0.338" (8.6 mm) - Can be drilled out to 3/8" (10 mm)

Installation Video: https://www.youtube.com/watch?v=XRs79cV9iKM

This kit replaces OEM part numbers (use these to confirm vehicle fitment):

3CN853211A9B9
3CN853212A9B9

KIT IS MADE TO ORDER!

Confirmed Fit Lights, by Customers!!!

Light: AuxBeam R4 SERIES 4" LED PODS
Mounting Bracket: ILB (90°)
Height: 3.2” (81.28 mm) Including Mounting Bracket
Width: 4.75” (121 mm)
Bolt Diameter: 8 mm
Note: Back plating available for this light. Send us an e-mail if you intend to use it!

---

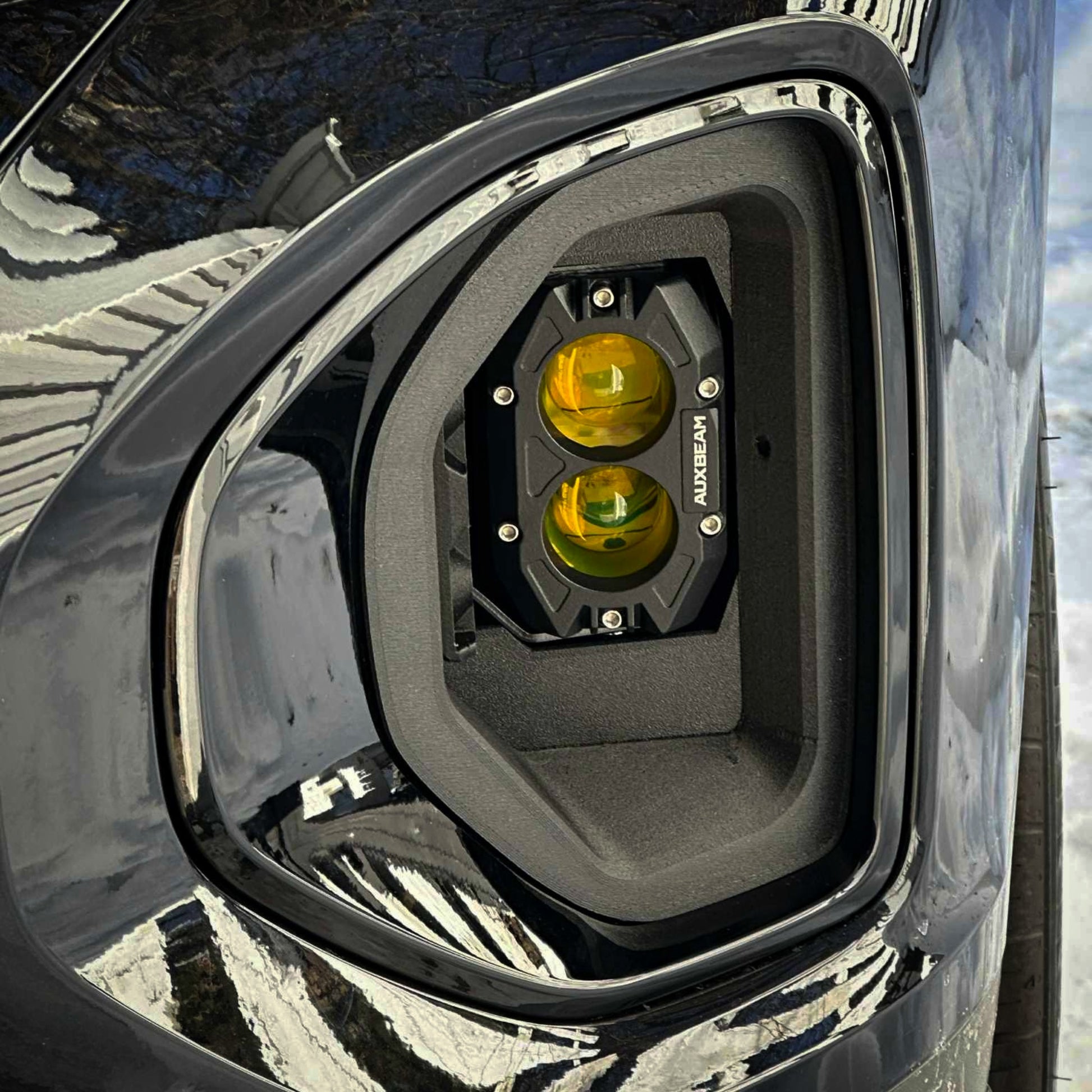

Light: AuxBeam 3"-72W (NOT EMBEDDED)
Mounting Bracket: HLB
Height: 3.54" (90 mm) Including Mounting Bracket
Width: 3.15" (80 mm)
Bolt Diameter: 8 mm

---

*RES Engineered Technologies Inc. is not liable for any electronics/wiring related work, or voids of warranties due to electrical work. RES Engineered Technologies Inc. is also not liable for any law violations due to improperly mounted/directed lights.
